Outrigger Flagpole Wall
Mounts |
Note: when
outrigger flagpoles are used, additional bracing of the flagpole
shaft may be required. This depends on, but is not limited to,
shaft length, shaft wall thickness, flag size and location. Due
to variations in mounting applications, wall mounting hardware
is not included as part of the package.
 |

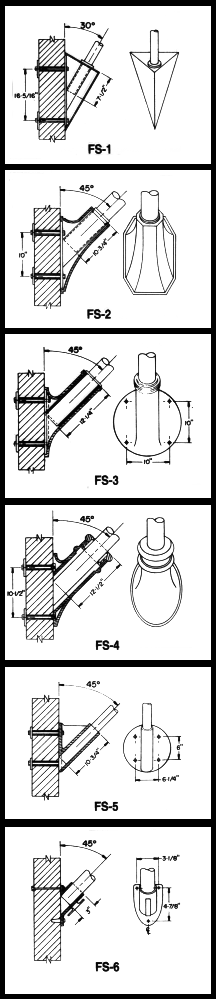

STYLE FS-1
Fabricated two piece assembly with the wall
mount base plate constructed from 1/2" thick
6063-T6 aluminum plate and the polished
triangular cover plate fabricated from 1/8"
aluminum plate. The cover plate is anchored to
the shaft by stainless steel set screws.
STYLE FS-2
Heavy aluminum casting conceals the mounting
plate fabricated from 1/2" 6063-T6 aluminum. The
shaft and cover casting are secured to the
mounting plate by stainless steel set screws.
STYLE FS-3
Heavy aluminum casting with exposed location for
mounting bolts. Flagpole shaft is secured by
stainless steel set screws.
STYLE FS-4
Polished heavy aluminum casting with threaded
holes in rear allows for attachment of mounting
bolts from the reverse side of the wall.
Flagpole shaft is secured by stainless steel set
screws.
STYLE FS-5
Heavy one piece aluminum casting with a sand
blast finish has exposed location for mounting
bolts. Flagpole shaft is secured by stainless
steel set screws.
STYLE FS-6
Small one piece aluminum casting with a sand
blast finish has an integrally cast cleat. Ideal
as bracket for lightweight 2" diameter flagpole
shafts. Available on 45 degree or 30 degree
angle from vertical. Shaft is secured with
stainless steel set screw.
|
|
|
|
Vertical Wall Mounts |
|
STYLE FV-1:
Upper and lower brackets are of cast aluminum
construction with flagpole shaft resting on closed
bottom of lower bracket and secured at the upper bracket
with a stainless steel set screw. The distance between
brackets is dependent on variables including shaft
length, flag size and specific area conditions.
Additional pass-thru style upper brackets may also be
used to produce an even more dramatic bracket
arrangement on longer poles. |
|
STYLE FV-2:
Upper and lower brackets are of cast aluminum
construction with flagpole shaft resting on closed
bottom of lower bracket and secured at the upper bracket
with a stainless steel set screw. The distance between
brackets is dependent on variables including shaft
length, flag size and specific area conditions.
Additional pass-thru style upper brackets may also be
used to produce an even more dramatic bracket
arrangement on longer poles. |
|
STYLE FV-3:
Upper and lower brackets are of cast aluminum
construction with flagpole shaft resting on closed
bottom of lower bracket and secured at the upper bracket
with a stainless steel set screw. The distance between
brackets is dependent on variables including shaft
length, flag size and specific area conditions.
Additional pass-thru style upper brackets may also be
used to produce an even more dramatic bracket
arrangement on longer poles. |
|
STYLE FV-4:
Cast aluminum one piece unit. Shaft is secured by a
stainless steel set screw. |
|
STYLE FV-5:
Single piece bracket fabricated from 1/2" thick 6063
aluminum plate. Shaft is secured by a stainless steel
set screw after resting in enclosed lower end of
bracket. |
|
STYLE FV-6:
Cast aluminum construction with flagpole shaft resting
on the closed bottom of the lower bracket and secured at
the upper bracket with a stainless steel set screw. |
|
| |
|
|
