General installation instructions covering a wide range of
poles. |
|
Also see this 9 photo tutorial Click Here |
|
|
Before You
Dig...
- Read though
these instructions and make sure that you have
all the components and tools required for the
installation.
- Select a
location for your flagpole where it cannot be
struck by lawnmowers, automobiles, bikes, etc.
- Avoid locations
in the vicinity of power lines
- Check with your
local municipality regarding height ordinances
and for any underground gas or power lines. Many
municipalities have a "Dig Safe" bureau that can
provide you with this information.
- It is best to
unwrap the pole as soon as possible after it's
been delivered and kept straight and dry during
storage.
- Do not attempt
to climb flagpoles.
- Do not lean
ladders against flagpoles.
- Do not allow
children to operate a flagpole unattended.
Tools and
Accessories Required - Not Included
- Level
- Screwdriver -
Phillips head for truck screws
- Cedar
wedges/shims
- Dry sand
- Cement
-
Shovel/excavating tools
- Crushed
stone/pebbles for drainage
|
|
|
|
|

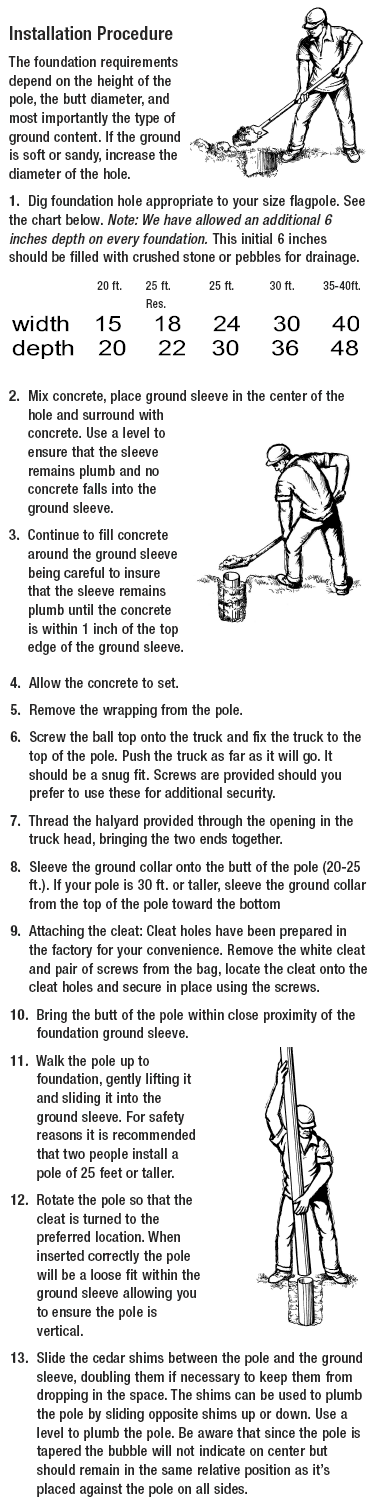

| Home
kits only require
approximately a 12 to 24 inch
diameter hole, and the depth of hole would be equal
to the length of sleeve that comes with your pole
plus 3 to 6" for gravel or sand. Best to have gravel on bottom
of hole for drainage. Dementions listed below are
for commercial poles, but the procedure is the same.
General rule is 3 to 4 times the diameter of pole
and 10% of pole height goes in ground. (20 ft. tall
pole above ground =2 ft. in ground). |
|
approx. diameter & depth given as all locations are
not the same but you can use info as a starting
point. |
|
|
|
|
